Quantum Gates Learning Gallery

Explore the I, X, Y, Z, H, S, and T single-qubit gates.

These supplementary illustrations explain quantum gates discussed in the Quantum AI Systems volumes. They were developed as companion learning resources and do not appear as numbered figures in the published books.

Public previews carry a QuSciTech Press watermark. Select a thumbnail to enlarge the illustration, then use Zoom for small labels and equations.

Copyright © QuSciTech Press and Dr. Joe Wilson. Reproduction, redistribution, automated extraction, and commercial reuse are prohibited without written permission.

Request Permission to Use an Illustration

To request reuse permission, identify the gate name and describe the intended publication, course, presentation, website, or other use. Written approval is required before reproduction or distribution.

Request Permission
7 gate visuals

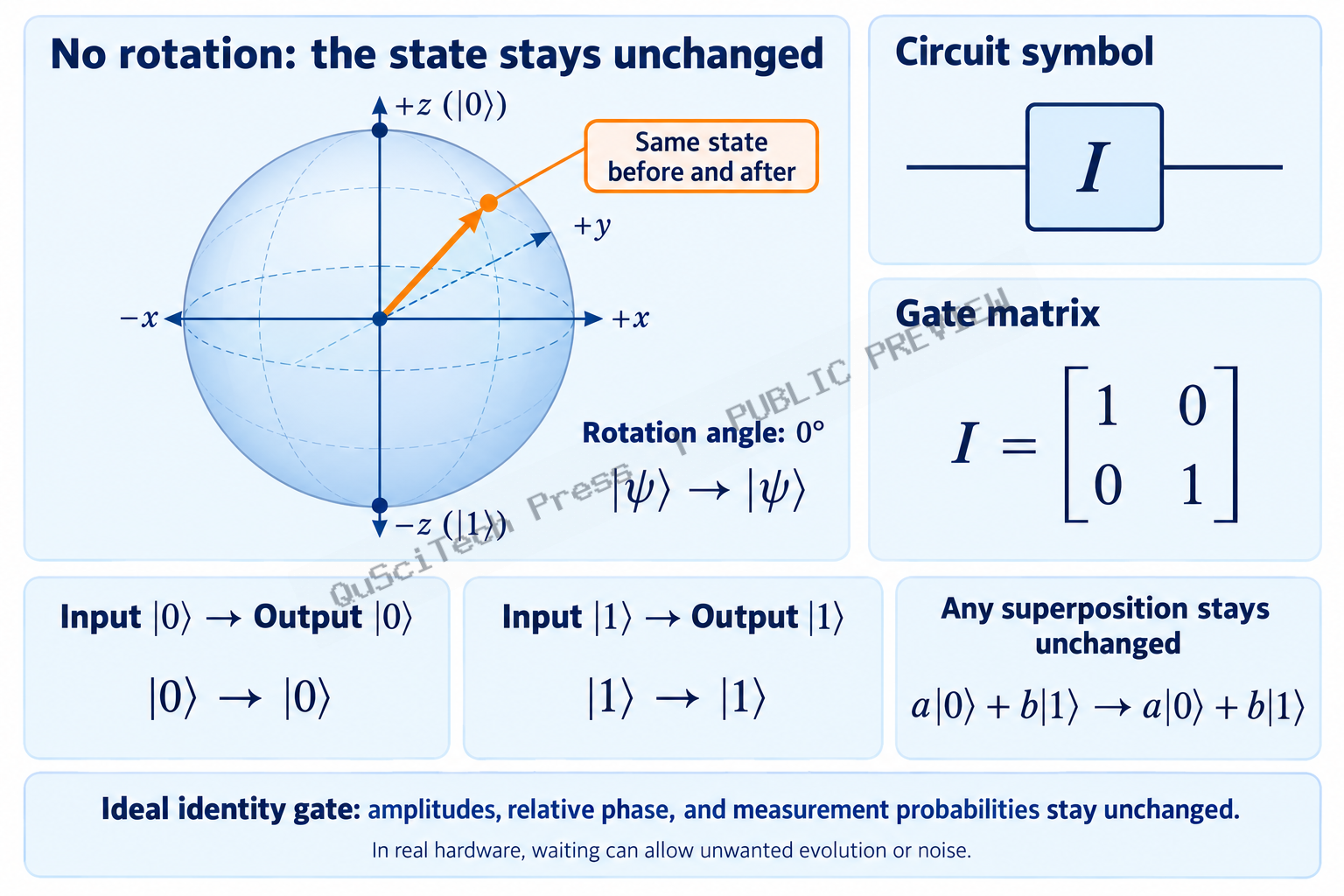

Identity Gate (I)

Identity Gate (I)

Leaves the qubit unchanged.

a|0⟩ + b|1⟩ → a|0⟩ + b|1⟩

Open full-size illustration

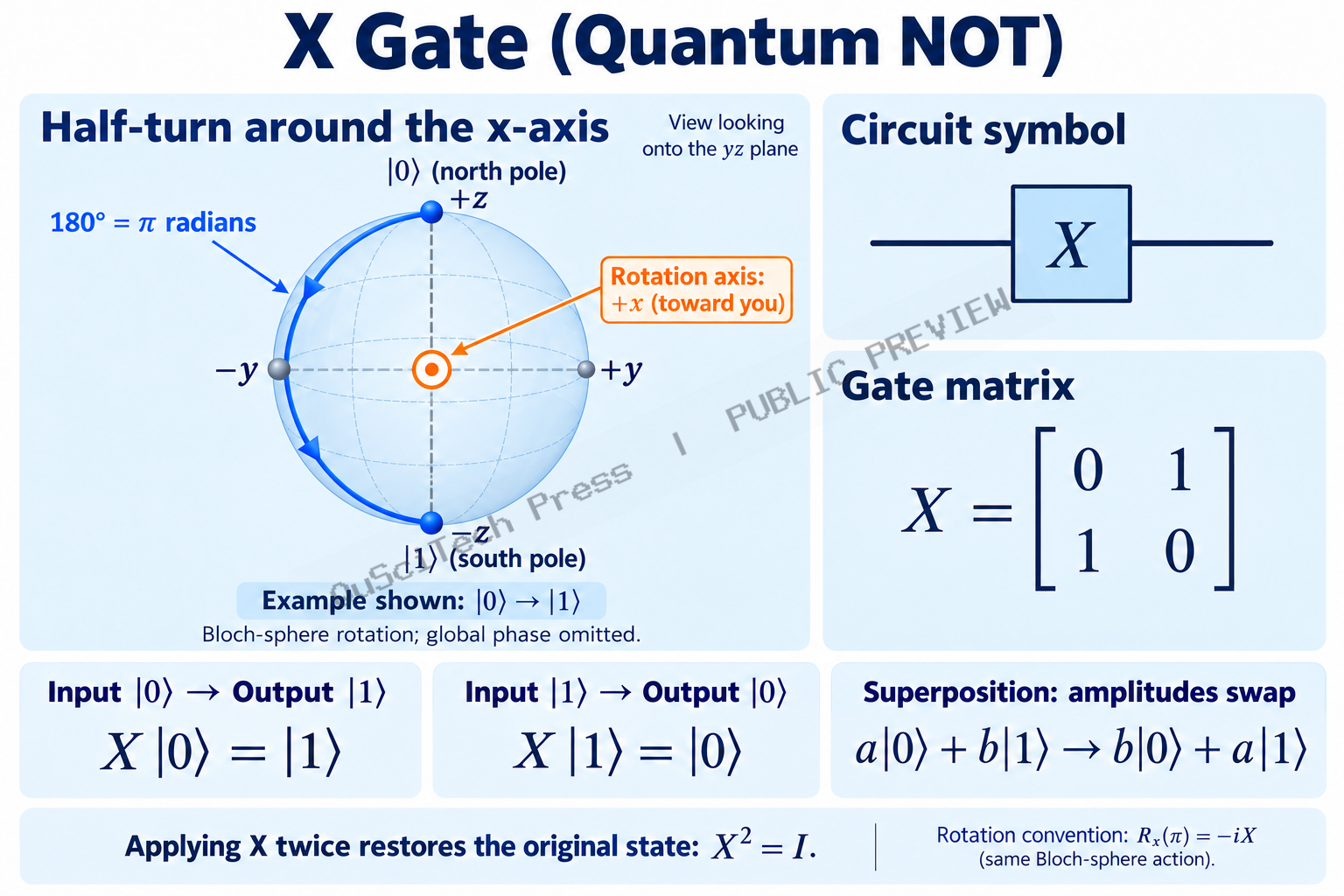

Pauli-X Gate (Quantum NOT)

Pauli-X Gate (Quantum NOT)

Swaps the amplitudes of |0⟩ and |1⟩.

a|0⟩ + b|1⟩ → b|0⟩ + a|1⟩

Open full-size illustration

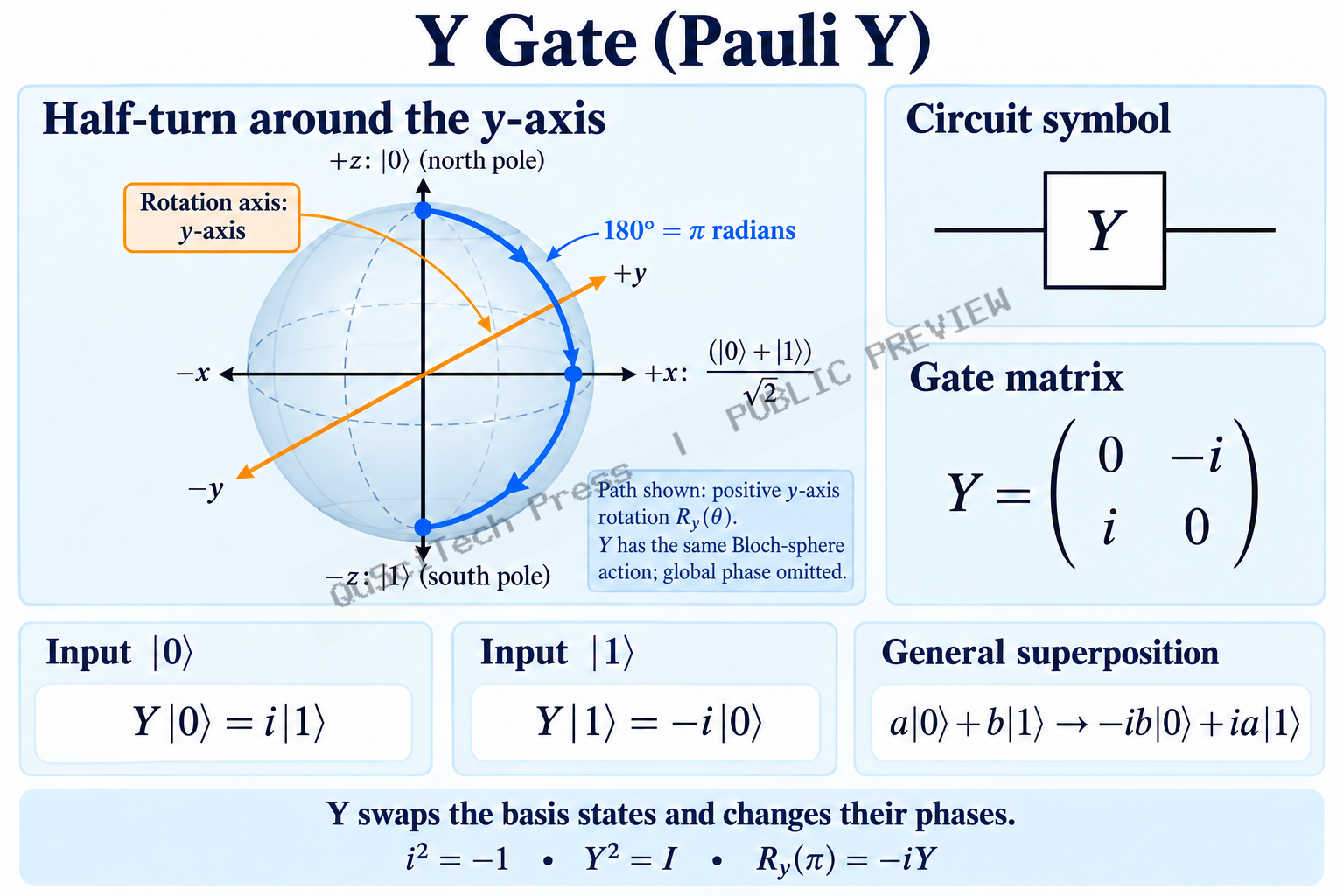

Pauli-Y Gate

Pauli-Y Gate

Swaps basis states and changes their phases.

a|0⟩ + b|1⟩ → −ib|0⟩ + ia|1⟩

Open full-size illustration

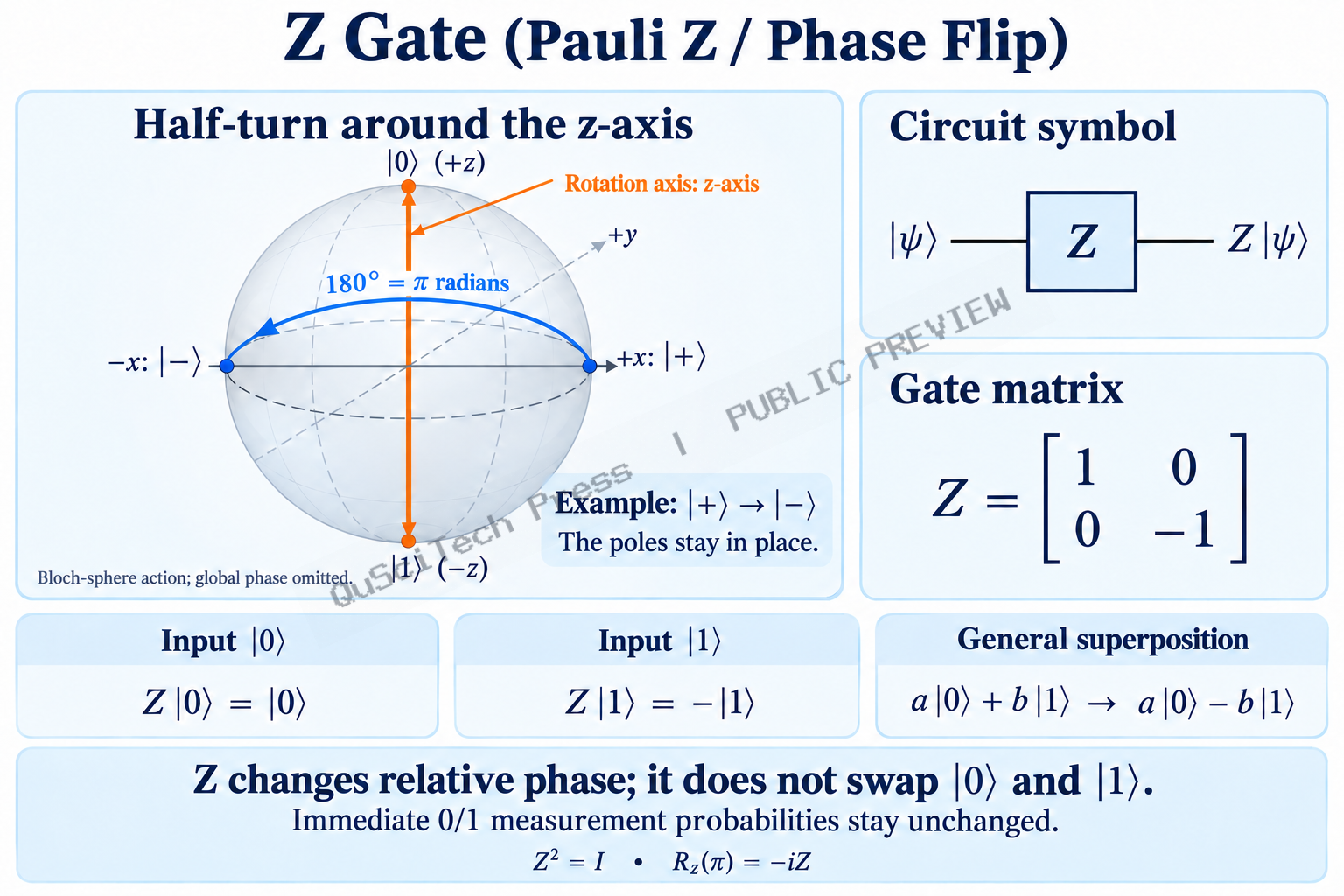

Pauli-Z Gate (Phase Flip)

Pauli-Z Gate (Phase Flip)

Changes relative phase; immediate 0/1 measurement probabilities stay unchanged.

a|0⟩ + b|1⟩ → a|0⟩ − b|1⟩

Open full-size illustration

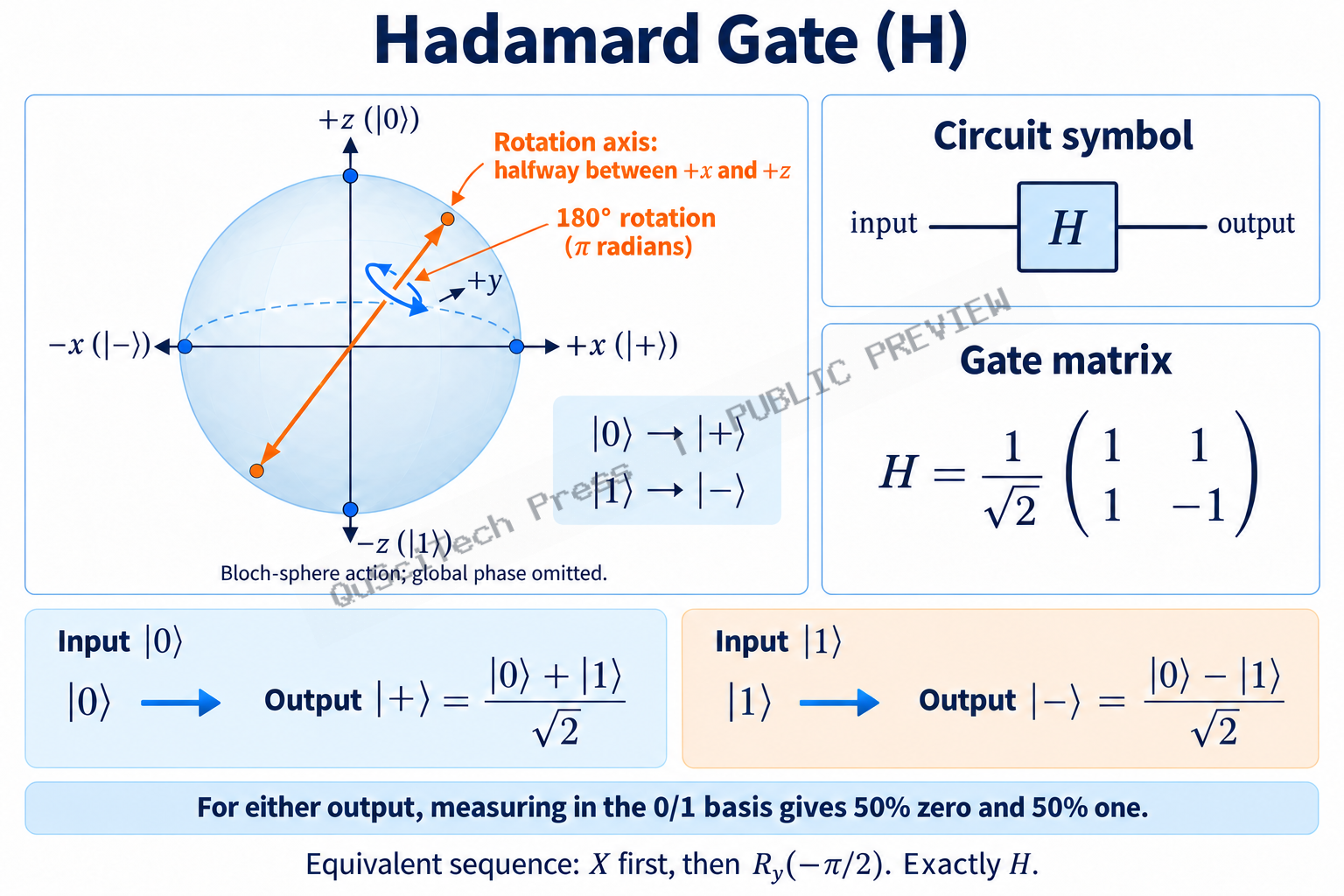

Hadamard Gate

Hadamard Gate

Converts basis states into equal superpositions and can reveal phase differences.

H|0⟩ = |+⟩; H|1⟩ = |−⟩

Open full-size illustration

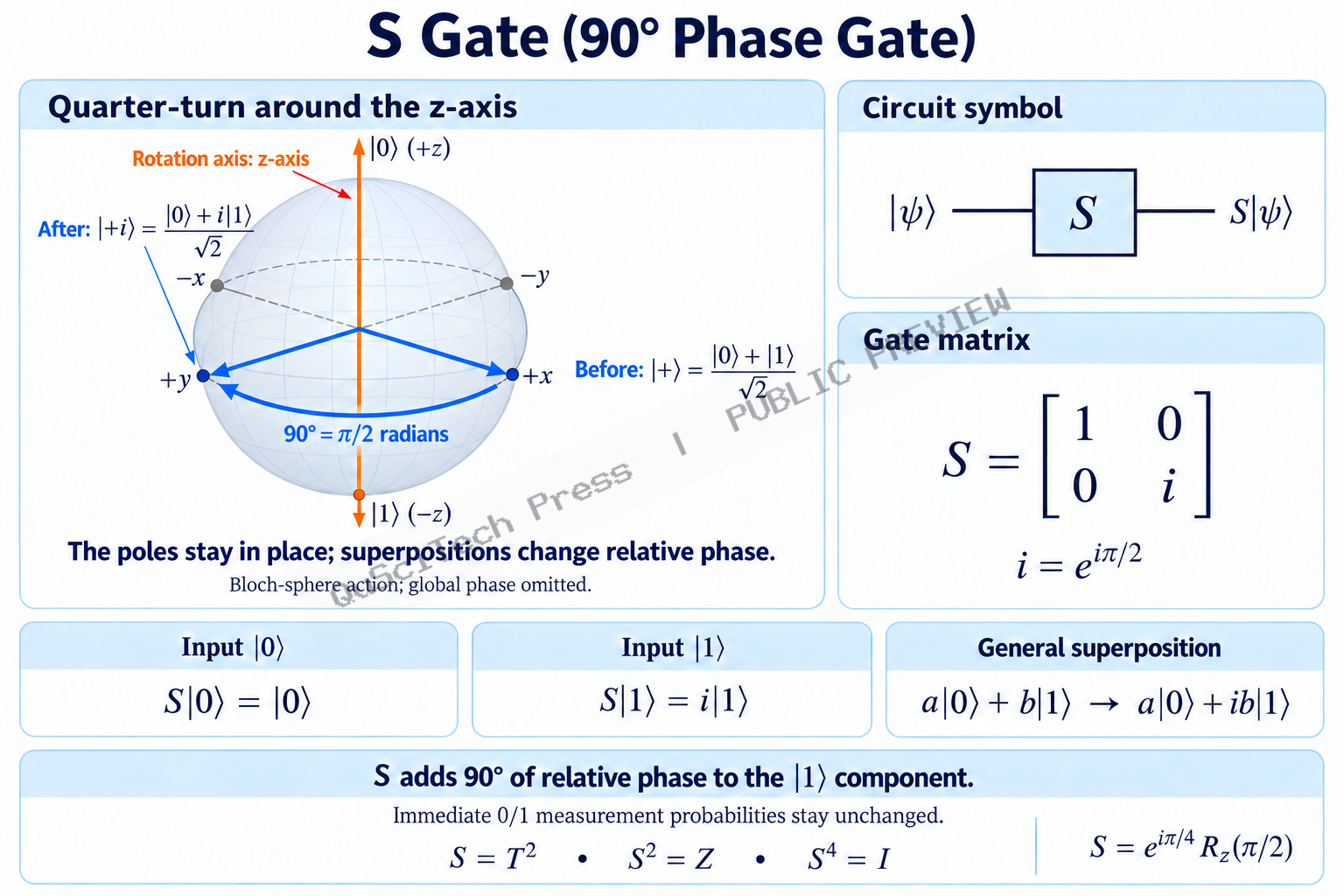

S Gate (90° Phase Gate)

S Gate (90° Phase Gate)

Adds 90° of relative phase to the |1⟩ component; sends |+⟩ to |+i⟩.

a|0⟩ + b|1⟩ → a|0⟩ + ib|1⟩

Open full-size illustration

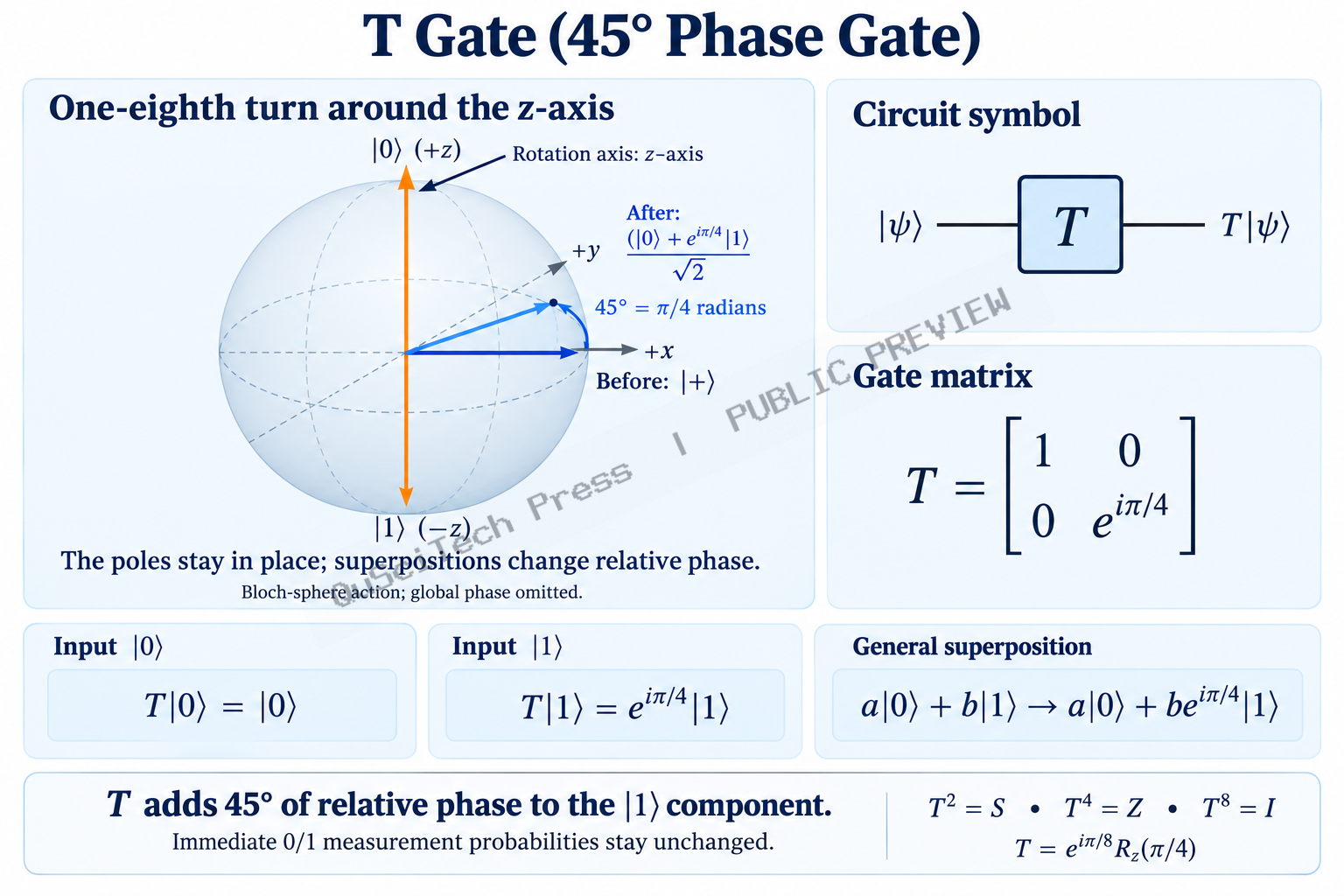

T Gate (45° Phase Gate)

T Gate (45° Phase Gate)

Adds 45° of relative phase to the |1⟩ component.

a|0⟩ + b|1⟩ → a|0⟩ + b e^(iπ/4)|1⟩

Open full-size illustration
